How do I choose grinding media?

What are the different types of grinding media?

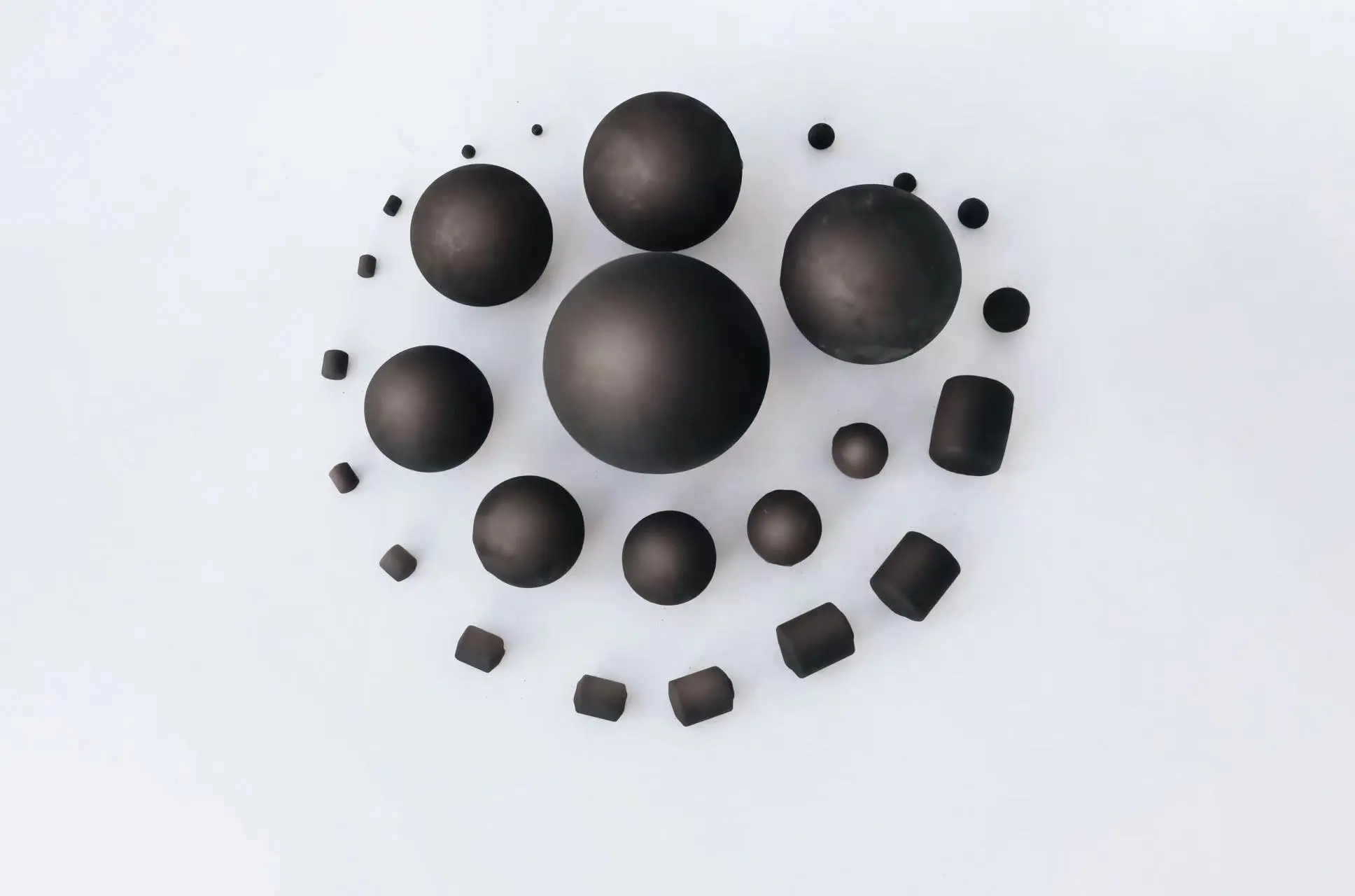

The materials, shapes, and sizes of different kinds of grinding media are tailored to specific grinding applications. Some common varieties include:

• Steel Balls: Due to their resistance to abrasion, these are well-suited for coarse grinding.
• Ceramic Balls: Favored choice, especially in applications with stringent purity standards like pharmaceuticals and fine chemicals, designed to meet high purity requirements and minimize contamination.
• Aluminum Oxide Dabs: These proposition high wear opposition and are especially reasonable for dry crushing cycles.
• Crystal Balls: Favored for a wide range of grinding applications due to their high density and superior grinding efficiency.

Each kind of cylpebs grinding media has specific properties that make it suitable for particular material properties and grinding requirements.

How does the material of grinding media affect performance?

The material of the grinding media assumes a urgent part in deciding the presentation and effectiveness of the grinding system. Various materials offer particular benefits and drawbacks relying upon the particular prerequisites of the application, for example, defilement control, strength, and the ideal degree of fineness.

1. Ceramic Media for Grinding

Ceramic media are an excellent choice for high-purity grinding applications due to their purity and resistance to chemical reactions. In order to guarantee the integrity and safety of their products, industries like pharmaceuticals, food processing, and electronics frequently require extremely low levels of contamination. Non-reactive ceramic media, such as alumina or zirconia, do not introduce impurities into the milled product. Ceramics can also be tailored to have specific hardness and density properties, which can help achieve uniformity and precise distributions of particle sizes.

2. Grinding Media for Steel

Steel balls are well-suited for coarse grinding applications where significant force is required to break down large particles due to their robustness and high impact strength. Steel grinding media's cost-effectiveness and durability are advantageous to mining and cement production. Steel media are able to withstand the harsh conditions of heavy-duty milling processes due to their hardness, reducing wear and increasing lifespan. However, iron contamination may be introduced by steel media, which may be undesirable in some applications, particularly those where product purity is essential.

3. Other Materials for Grinding Media

• Beaded Glass: Glass beads are used in applications where cost and a moderate level of contamination are acceptable. They are less long-lasting than steel or ceramic media, but they can be useful for some milling applications, particularly in the paint and coatings industry.
• Polymer Materials: The lightweight plastic grinding media can be used for gentle polishing. They aren't good for hard milling, but they can be useful in processes that only need a little abrasion.
• Natural Resources: Natural materials like river stones or flint pebbles can be used in some applications, and they can be cost-effective and suitable for certain grinding processes. When compared to manufactured media, these natural media options tend to be less consistent in size and shape, but they may be suitable for conventional milling techniques.

4.Impact on Grinding Proficiency

The decision of cylpebs grinding media material influences the productivity of the crushing system in more than one way:

• Transfer of Energy: The efficiency with which kinetic energy is transferred to the material being ground is influenced by the media's density and hardness. Steel and other media with a higher density produce more powerful collisions, which can improve grinding efficiency.
• Resistance to Wear: Steel and some ceramics are examples of durable materials that resist wear and retain their size and shape for longer, resulting in consistent performance over time.
• Levels of Contamination: Depending on the material, the likelihood that the media will contaminate the milled product varies. Media that do not shed particles or react with the material being processed are needed for high-purity applications.
• Costs to Consider: The underlying expense, life expectancy, and substitution recurrence of the media likewise impact the general expense proficiency of the crushing activity. Although ceramic media may initially cost more, their longer lifespan and lower risk of contamination may offset the initial cost in some applications.

In conclusion, the grinding process's performance, effectiveness, and suitability for various industries and applications are significantly influenced by the material of the cylpebs grinding media. Operators can balance factors like cost, durability, and contamination control while optimizing milling processes by selecting the appropriate media material with care.

What factors should be considered when selecting grinding media?

Several important considerations should be made when selecting grinding media:

• Efficiency of grinding: It is essential to select media that can achieve the highest possible grinding efficiency for the particular application. The material should be effectively broken down by the media, and the desired distribution of particle sizes should be achieved.
• Resistance to abrasion: To withstand the wear and tear caused by the grinding process, the chosen media should have excellent abrasion resistance. This ensures consistent performance over time and a longer lifespan.
• Contamination: It is essential to select media that minimizes contamination in applications where high purity is required, such as the pharmaceutical or food industries. In such instances, ceramic or high-purity alumina media are frequently preferred.
• Shape and size: The grinding process is directly impacted by the media's size and shape. While larger media offer more effective coarse grinding, smaller media typically provide a finer grind. Additionally, the grinding action is influenced by the shape of the media. Media with a spherical shape typically provide a grinding that is more uniform, while media with a cylindrical or irregularly shaped shape may be appropriate for some applications.
• Cost: The cylpebs grinding media's cost-effectiveness should also be taken into account. This includes breaking down the underlying expense, media life expectancy, and in general crushing execution. Even though higher-quality media may cost more in the beginning, they may have better longevity and produce better grinding results, making them more cost-effective over time.

One can select the best grinding media for their particular application by carefully considering these aspects, ensuring optimal performance and desired outcomes.

Conclusion

In conclusion, achieving effective and efficient grinding processes necessitates selecting the appropriate grinding media. You can select media that maximizes your grinding performance by taking into account things like the material, size, shape, and application requirements. Please get in touch with us at sunnyqin@nhgrindingmedia.com if you have any inquiries or require assistance selecting the right cylpebs grinding media for your application.
