March 19, 2024
Deployed in a cement clinker grinding mill, these high-chromium cast grinding balls feature stable hardness and low breakage. They help us maintain consistent grinding output and lower long-term consumable costs.
.webp)
.webp)
 - 副本.webp)
.webp)
.webp)

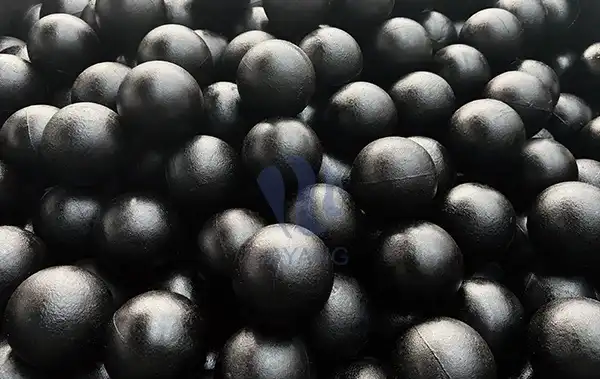

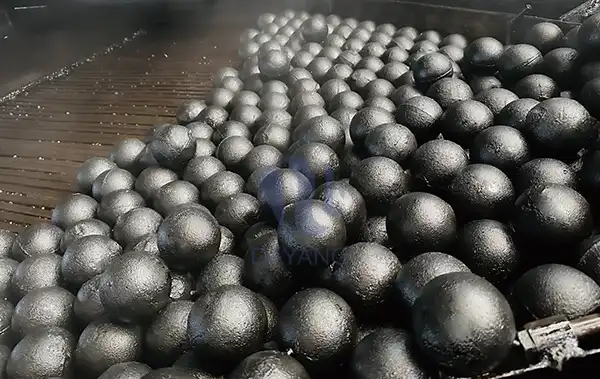

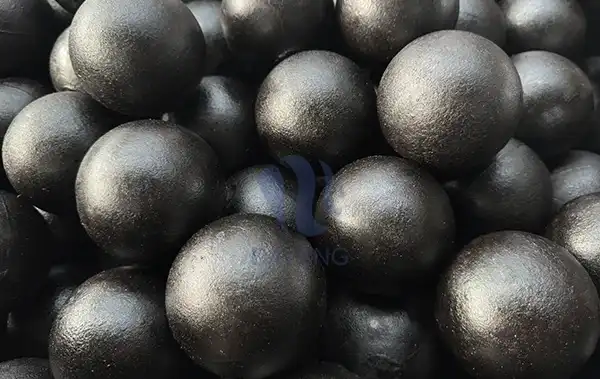

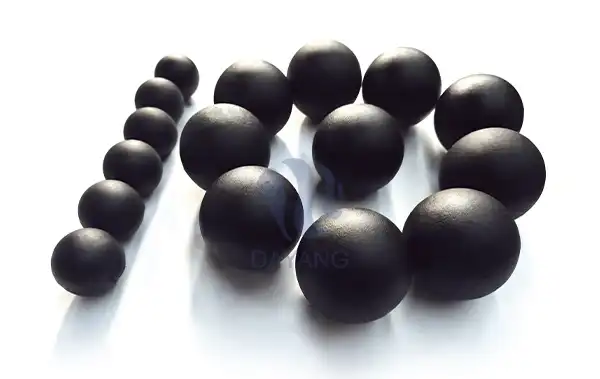

Grinding Ball for Copper Mine
This type of grinding balls are produced with different chemistries、 steel and cast iron, with chrome contents ranging from 1% to 32% and sizes ranging from 4.8mm to 150mm. Different heat-treatment cycles are used to impart specific metallurgical properties depending on the intended application. Whether the predominant wear mechanism is abrasion, corrosion or impact, NINGHU can offer a product to suit.
Product Description
What is Grinding Ball for Copper Mine?
In the realm of mining, where efficiency and productivity reign supreme, the choice of grinding media holds significant importance. Grinding balls are pivotal components in the comminution process, playing a crucial role in reducing the size of ore particles and facilitating mineral extraction. Specifically engineered for copper mines, our Grinding Balls for Copper Mine epitomize durability, precision, and superior performance. Crafted with meticulous attention to detail, these balls are designed to withstand the harsh conditions of copper mining operations while optimizing the grinding process for enhanced efficiency and profitability.
Advantages and Features:
- Exceptional Wear Resistance: Our grinding balls are forged from high-quality materials with exceptional wear-resistant properties, ensuring prolonged lifespan and minimal wear even under the most demanding conditions.
- High Impact Toughness: Engineered to endure high-impact forces, our grinding balls maintain their structural integrity, delivering consistent performance and efficient ore processing.
- Optimized Hardness: The optimal hardness of our grinding balls ensures effective grinding efficiency, minimizing energy consumption and maximizing throughput in copper mining operations.
- Uniform Size and Shape: Precision manufacturing techniques guarantee uniform size and shape of our grinding balls, resulting in consistent particle size distribution and improved downstream processes.
- Corrosion Resistance: Resistant to corrosion and oxidation, our grinding balls maintain their integrity in corrosive environments, prolonging equipment lifespan and reducing maintenance costs.
Technical Parameters:
| Mechanical Properties and Microstruture | |||||
| Name | Designation | HRC | Impact Value (J/cm²） |
Microstruture | Falling Times |
| Special High Chromium Alloy Casting Grinding Balls | ZQCr26 | ≥60 | ≥4.0 | M+C | ≥20000 |
| ZQCr20 | ≥60 | ≥4.0 | M+C | ≥20000 | |
| Ultra-high Chromium Alloy Casting Grinding Balls | ZQCr15 | ≥60 | ≥4.0 | M+C | ≥20000 |
| Ordinary High Chromium Alloy Casting Grinding Balls | ZQCr12 | ≥58 | ≥3.5 | M+C | ≥18000 |
| Medium Chromium Alloy Casting Grinding Balls | ZQCr8 | ≥48 | ≥2.5 | P+C | ≥12000 |
| ZQCr5 | ≥47 | ≥2.0 | P+C | ≥12000 | |
| Low Chromium Alloy Casting Grinding Balls | ZQCr2 | ≥45 | ≥2.0 | P+C | ≥10000 |
| Carbide Ductile Iron Grinding Balls | ZQCADI | ≥50 | ≥2.0 | P+C | |
| M-Martensite P-Pearlite A-Austenite C-Carbide | |||||
Process Flow:
- Raw Material Selection: High-quality steel is meticulously selected to ensure optimal performance and durability of the grinding balls.
- Forging: The selected steel undergoes precision forging under controlled temperatures to achieve the desired hardness and microstructure.
- Heat Treatment: The forged grinding balls undergo heat treatment processes to further enhance their mechanical properties, including hardness and impact toughness.
- Quality Control: Rigorous quality control measures are implemented throughout the manufacturing process to ensure conformity to specifications and standards.
- Surface Treatment: Grinding balls are subjected to surface treatment processes to improve corrosion resistance and overall performance.
Application Fields:
- Copper Mining: Our grinding balls are specifically designed for use in copper mining operations, where they facilitate efficient ore processing and maximize mineral extraction.
Self-Developed Factory:
As a pioneer in the production of wear-resistant materials, our self-developed factory boasts over 30 years of experience in the industry. We are a high-tech enterprise and a governing unit of the China Foundry Association, recognized for our commitment to innovation and excellence. With ISO9001 quality system certification and state-of-the-art fully automated production lines, we have an annual production capacity of 50,000 tons, making us a preferred supplier for major domestic import and export companies.
After-Sales Service:
Our commitment to customer satisfaction extends beyond the sale. With prompt and efficient after-sales service, we ensure that our customers receive comprehensive support and assistance whenever needed. Our strengths in after-sales service include:
- Technical Support: Our team of experienced engineers is available to provide technical assistance and troubleshooting to address any issues or concerns.
- Timely Response: We prioritize timely response to customer inquiries and service requests, ensuring minimal downtime and uninterrupted operations.
- Quality Assurance: We stand behind the quality and performance of our products, offering warranty coverage and product replacement in the rare event of defects or discrepancies.
Contact Us
In conclusion, NINGHU stands as a premier manufacturer and supplier of Grinding Ball for Copper Mine, committed to delivering excellence and innovation to the mining industry worldwide. With our self-developed factory, customizable solutions, ample inventory, and expedited delivery, we are your trusted partner for high-quality wear-resistant solutions. Contact us at sunnyqin@nhgrindingmedia.com to explore how our products can optimize your copper mining operations for unparalleled efficiency and productivity.
