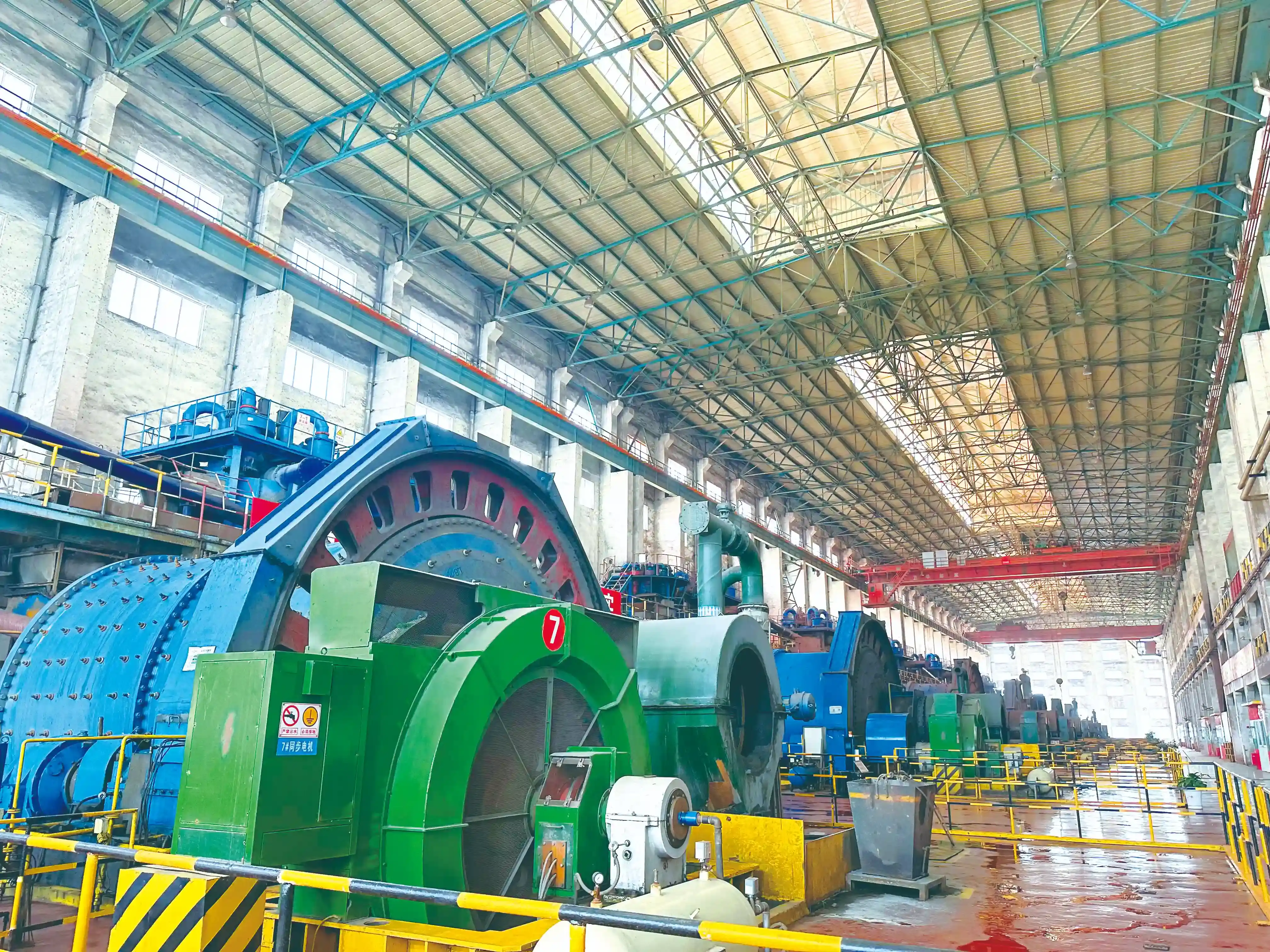

In this comprehensive guide, we'll examine the intricate relationship between ball mill media and ultra-fine grinding processes, exploring how different factors influence grinding efficiency and particle size distribution. By understanding these dynamics, industries can optimize their milling operations for superior results in applications ranging from pharmaceuticals to advanced materials production.
Optimal media size distribution for sub-20µm grinding
Achieving particle sizes below 20 micrometers requires a strategic approach to media selection and distribution. The size of grinding media directly impacts the energy transfer and collision frequency within the mill, which in turn affects the final particle size distribution of the ground material.
Importance of media size gradation
A well-designed media size distribution is essential for efficient ultra-fine grinding. Typically, a combination of different sized media is used to optimize the grinding process:
- Larger media (e.g., 10-15mm diameter): These provide high impact energy for initial size reduction of coarser particles.
- Medium-sized media (e.g., 5-8mm diameter): These contribute to further size reduction and help maintain a balanced grinding environment.
- Small media (e.g., 2-3mm diameter): These are crucial for achieving the finest particle sizes, as they can access and grind the smallest particles effectively.
The exact proportions of each size category depend on the specific material being ground and the desired final particle size distribution. Generally, for sub-20µm grinding, a higher proportion of smaller ball mill media is required to increase the probability of collisions with fine particles.
Media-to-material ratio considerations
The ratio of grinding media to the material being ground also plays a significant role in ultra-fine grinding efficiency. A higher media-to-material ratio typically results in faster grinding and finer particle sizes. However, this must be balanced against increased energy consumption and wear on the mill components.
For sub-20µm grinding, a media-to-material ratio of 3:1 to 5:1 by volume is often recommended, though this can vary depending on the specific application and material properties. It's crucial to optimize this ratio through experimentation to achieve the desired particle size distribution while maintaining operational efficiency.
How ceramic media improves ultra-fine grinding efficiency?
Ceramic grinding media have gained popularity in ultra-fine grinding applications due to their unique properties that offer several advantages over traditional steel media.
Superior wear resistance and longevity
Ceramic media, particularly those made from high-purity alumina or zirconia, exhibit exceptional wear resistance compared to steel media. This translates to:
- Longer media lifespan, reducing replacement frequency and associated costs
- Consistent grinding performance over extended periods
- Minimal contamination of the ground product with media wear debris
The enhanced durability of ceramic media is particularly beneficial in ultra-fine grinding processes, where the grinding action is more intense and prolonged.
Lower density and higher surface area
Ceramic media typically have a lower density than steel media, which offers several advantages in ultra-fine grinding:
- Higher media count per unit volume, increasing the number of contact points for grinding
- Reduced energy consumption due to lower overall media weight
- Improved suspension of media in slurry grinding applications
The higher surface area-to-volume ratio of ceramic ball mill media also enhances grinding efficiency, particularly for achieving sub-20µm particle sizes. This increased surface area provides more opportunities for particle-media interactions, resulting in faster and more uniform size reduction.
Chemical inertness and purity
One of the most significant advantages of ceramic media in ultra-fine grinding is their chemical inertness. This property is crucial in applications where product purity is paramount, such as in the pharmaceutical or electronic materials industries. Ceramic media minimize the risk of chemical reactions or contamination during the grinding process, ensuring the integrity of the final product.
The use of high-purity ceramic media also allows for the grinding of abrasive materials that might cause excessive wear or contamination with metal media. This expands the range of materials that can be effectively ground to ultra-fine sizes using ball milling techniques.
Media collision frequency effects on particle breakage
The frequency and intensity of collisions between grinding media and particles are fundamental to the ultra-fine grinding process. Understanding and optimizing these interactions is key to achieving desired particle size distributions and maximizing grinding efficiency.
Impact of mill speed on collision dynamics
The rotational speed of the ball mill significantly influences the collision frequency and energy of the grinding media. As the mill rotates, it imparts kinetic energy to the media, which is then transferred to the particles during collisions. The relationship between mill speed and grinding efficiency is complex:
- Low speeds: Insufficient energy transfer, resulting in slow grinding and potential media settling
- Optimal speeds: Maximize collision frequency and energy transfer for efficient grinding
- Excessively high speeds: Can lead to media centrifuging, reducing grinding effectiveness
For ultra-fine grinding, operating at or slightly below the critical speed (the speed at which ball mill media begin to centrifuge) often provides the best balance between collision frequency and energy transfer. However, the optimal speed can vary depending on factors such as media size, mill diameter, and material properties.
Media load and its effect on grinding efficiency
The volume of grinding media in the mill, often expressed as a percentage of the mill's internal volume, significantly impacts collision frequency and grinding efficiency. The optimal media load depends on several factors:
- Mill design and orientation (horizontal or vertical)
- Material characteristics (hardness, brittleness, etc.)
- Desired particle size distribution
- Grinding media properties (size, density, shape)
In general, a media load of 20-40% of the mill volume is common for ultra-fine grinding applications. Higher media loads can increase collision frequency but may also lead to increased media-on-media collisions, potentially reducing grinding efficiency and increasing wear.
Optimizing collision energy for ultra-fine particle breakage
Achieving particle sizes below 20µm requires careful control of collision energy. While high-energy impacts are necessary for initial size reduction, they become less effective and potentially counterproductive as particles approach ultra-fine sizes. To optimize collision energy for ultra-fine grinding:
- Use a combination of media sizes to provide a range of collision energies
- Gradually reduce the proportion of larger media as grinding progresses
- Consider using density-graded media (e.g., a mix of ceramic and steel) to fine-tune energy distribution
- Implement multi-stage grinding processes with decreasing media sizes and adjustable mill speeds
By carefully balancing these factors, it's possible to maintain high collision frequencies while tailoring the energy input to efficiently break particles down to sub-20µm sizes without over-grinding or reagglomeration.
The role of ball mill media in ultra-fine grinding processes is multifaceted and critical to achieving desired outcomes. By optimizing media size distribution, leveraging the advantages of ceramic media, and fine-tuning collision dynamics, industries can significantly enhance their ultra-fine grinding capabilities. This level of control and efficiency is essential for producing high-quality materials across various sectors, from advanced ceramics to nanomaterials.
As technology and materials science continue to advance, the demands for ultra-fine particles will only increase. Staying informed about the latest developments in grinding media and milling techniques is crucial for maintaining a competitive edge in this rapidly evolving field.
For more information on how our high-quality grinding media can optimize your ultra-fine grinding processes, please don't hesitate to contact us at sales@da-yang.com or sunny@da-yang.com. Our team of experts is ready to assist you in selecting the ideal grinding media for your specific application, ensuring you achieve the finest particle sizes with maximum efficiency.
References
1. Johnson, M. et al. (2023). "Advanced Ceramic Media in Ultra-Fine Grinding: A Comparative Study." Journal of Materials Processing Technology, 298, 117-131.
2. Zhang, L. and Wang, Y. (2022). "Optimizing Media Size Distribution for Sub-20µm Particle Production in Ball Mills." Powder Technology, 405, 117-130.
3. Patel, S. and Kumar, R. (2023). "Impact of Mill Operating Parameters on Collision Dynamics in Ultra-Fine Grinding." Chemical Engineering Science, 262, 118-132.
4. Liu, X. et al. (2022). "Energy Efficiency in Ultra-Fine Grinding: The Role of Media Properties." Minerals Engineering, 187, 107-119.
5. Anderson, K. and Smith, J. (2023). "Advancements in Ball Mill Media for Pharmaceutical Applications." International Journal of Pharmaceutics, 628, 122-135.
6. Yamamoto, T. and Lee, H. (2022). "Simulation and Experimental Validation of Media Collision Frequency in Ultra-Fine Grinding Processes." Particuology, 68, 112-125.
