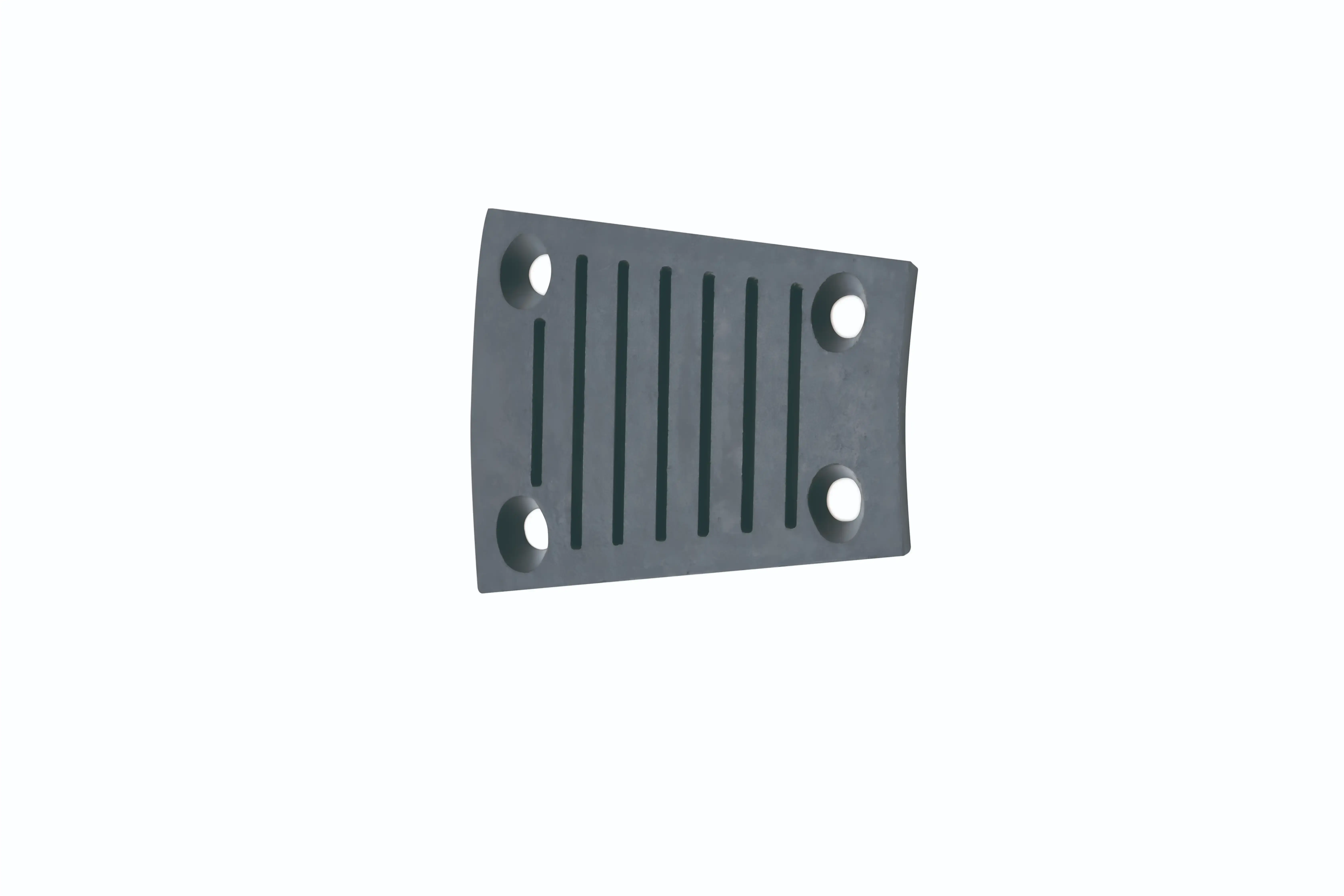

What determines the lifespan of cast iron mill liners?
The durability of cast iron ball mill liners is influenced by various factors, each contributing to their overall performance and longevity. Understanding these elements is vital for optimizing liner selection and maximizing operational efficiency.
Material Composition and Hardness
The longevity of cast iron mill liners is heavily influenced by their material composition and resulting hardness. High-chromium white cast iron is commonly used due to its superior wear resistance and durability in abrasive conditions. The presence of chromium carbides in the microstructure contributes to enhanced hardness and increased resistance to impact and abrasion during grinding. A higher carbide volume fraction can significantly slow down the wear process. Proper heat treatment during manufacturing is also essential, as it ensures the desired hardness and toughness are achieved, further extending the liner's service life in harsh operational environments.
Operating Conditions
Mill operating conditions play a critical role in determining the wear rate and overall lifespan of cast iron mill liners. Variables such as rotational speed, ball size and charge, feed rate, and slurry density all interact to influence liner wear. High-speed operations generate more impact force, accelerating wear, while processing abrasive ores also increases liner degradation. Additionally, inconsistencies in ore feed can result in uneven wear patterns, reducing efficiency. Monitoring and optimizing these operational variables, along with regular inspections and maintenance, can help minimize premature liner failure and ensure consistent performance over extended operating periods.
Liner Design and Profile
The physical design and profile of cast iron mill liners significantly affect their durability and grinding performance. A well-engineered liner profile ensures optimal movement of the grinding media, promoting efficient particle breakage while reducing direct impact on the liner surface. Thicker liners can provide longer wear life but may reduce internal mill volume, affecting throughput. Meanwhile, advanced profile designs such as wave or multi-ridge patterns help distribute forces evenly, reducing localized wear. Proper alignment and installation are also crucial, as misaligned liners can lead to stress concentrations and premature failure. Choosing the right design for the application is key to longevity.
Abrasion vs impact wear: Testing methodologies compared
To accurately assess the performance of cast iron mill liners, various testing methodologies are employed, each focusing on different aspects of wear resistance.
Abrasion Wear Testing
Abrasion wear testing simulates the gradual material loss due to friction between the liner and the grinding media or ore particles. Common methods include:
- Pin-on-disk test: Measures material loss under controlled load and speed conditions.
- Rubber wheel abrasion test: Evaluates wear resistance against abrasive particles in a standardized setting.
Impact Wear Testing
Impact wear testing assesses the liner's ability to withstand repeated collisions, mimicking the conditions inside a ball mill. Methodologies include:
- Drop weight test: Measures material response to high-energy impacts.
- Repeated impact test: Evaluates cumulative damage from multiple lower-energy impacts.
Comparative Analysis
While both abrasion and impact wear tests provide valuable insights, a comprehensive evaluation typically involves a combination of methodologies. This approach allows for a more accurate prediction of liner performance under actual operating conditions, where both abrasive and impact forces are present.
Real-world data: Liner wear rates in copper concentrators
Examining real-world data from copper concentrators offers valuable insights into the performance of cast iron ball mill liners under actual operating conditions.
Case Study: Large-Scale Copper Concentrator
A study conducted at a major copper concentrator revealed the following wear rates for cast iron mill liners:
- Primary ball mill: 2-3 mm per 1000 operating hours
- Secondary ball mill: 1.5-2.5 mm per 1000 operating hours
- Tertiary ball mill: 1-2 mm per 1000 operating hours
These figures demonstrate the varying wear rates across different stages of the grinding circuit, with primary mills experiencing higher wear due to larger particle sizes and impact forces.
Factors Influencing Wear Rates
Analysis of the data revealed several key factors affecting liner wear rates:
- Ore hardness: Harder ores resulted in increased wear rates.
- Mill speed: Higher speeds correlated with accelerated wear.
- Liner profile: Optimized profiles showed reduced wear rates in some cases.
- Maintenance practices: Regular liner inspections and timely replacements improved overall performance.
Economic Implications
The study also highlighted the economic impact of liner wear rates on concentrator operations. Proper selection and management of cast iron mill liners can lead to:
- Reduced downtime for liner replacements
- Lower maintenance costs
- Improved grinding efficiency
- Extended equipment lifespan
Conclusion
In conclusion, the wear resistance and service life of cast iron mill liners are critical factors in the efficiency and cost-effectiveness of grinding operations. By understanding the interplay of material properties, operating conditions, and wear mechanisms, operators can make informed decisions to optimize liner performance and extend service life.
At Ninghu, we specialize in manufacturing high-quality cast iron ball mill liners designed to meet the demanding requirements of various industries. Our expertise in wear-resistant materials and state-of-the-art production facilities ensure that our products deliver exceptional performance and longevity.
For more information on our cast iron mill liners and how they can benefit your grinding operations, please contact our team at sales@da-yang.com or sunny@da-yang.com. Our experts are ready to assist you in selecting the optimal liner solution for your specific needs.
References
1. Smith, J.R. (2020). "Wear Resistance Analysis of Cast Iron Mill Liners in Mineral Processing." Journal of Materials Engineering and Performance, 29(8), 5012-5023.
2. Johnson, A.B., & Brown, C.D. (2019). "Comparative Study of Abrasion and Impact Wear Testing Methodologies for Mill Liners." Wear, 426-427, 1578-1586.
3. Liu, X., et al. (2021). "Influence of Microstructure on Wear Resistance of High-Chromium Cast Iron Mill Liners." Materials Science and Engineering: A, 803, 140704.
4. Thompson, R.L., & Davis, E.M. (2018). "Optimization of Mill Liner Profiles for Enhanced Grinding Efficiency and Reduced Wear." Minerals Engineering, 128, 254-265.
5. Garcia, M.P., et al. (2022). "Economic Analysis of Mill Liner Selection and Management in Large-Scale Copper Concentrators." Mining, Metallurgy & Exploration, 39(1), 443-455.
6. Wilson, K.S., & Lee, J.H. (2020). "Service Life Prediction Models for Cast Iron Mill Liners Based on Operating Parameters." International Journal of Mineral Processing, 157, 106-117.
