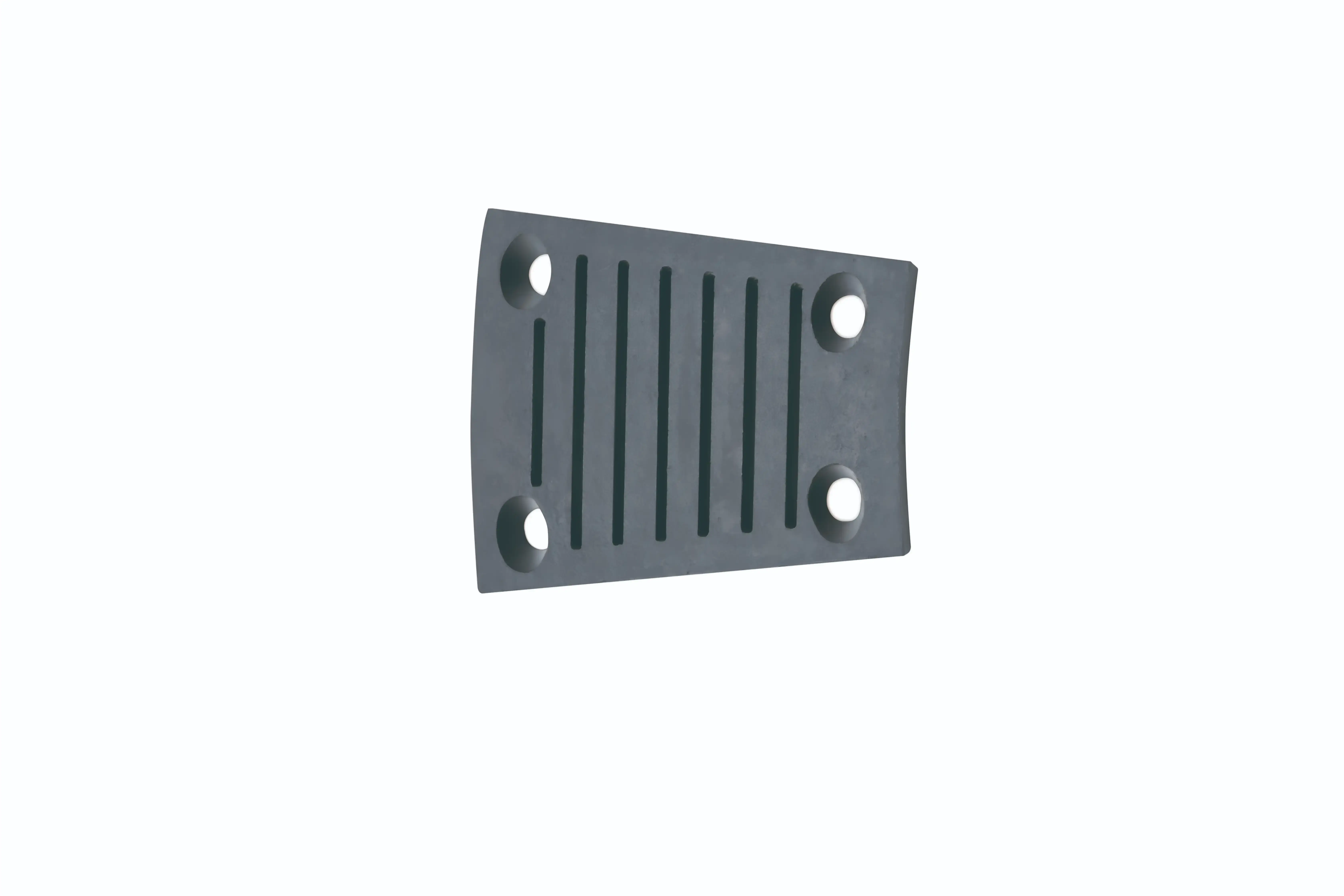

Cast Iron Mill Liners: Manufacturing Processes and Quality Standards

Cast iron mill liners are essential components in various industrial grinding operations, providing protection and enhancing the efficiency of ball mills. At NINGHU, we specialize in manufacturing high-quality cast iron ball mill liners that meet rigorous industry standards. This article delves into the manufacturing processes and quality control measures that ensure the superior performance of our products.

Step-by-step: How cast iron mill liners are manufactured?

The production of cast iron mill liners involves a meticulous process that combines traditional foundry techniques with modern technology. Let's examine the key stages in manufacturing these crucial components:

Raw Material Selection and Preparation

The first step in creating high-quality cast iron mill liners is selecting the appropriate raw materials. This typically includes high-grade iron, carbon, and various alloying elements such as chromium, molybdenum, and nickel. The precise composition is determined based on the specific requirements of the final product, such as hardness, wear resistance, and impact strength.

Melting and Alloying

Once the raw materials are selected, they are melted in a furnace at temperatures exceeding 1,400°C (2,552°F). During this process, the alloying elements are added in carefully controlled quantities to achieve the desired chemical composition. Advanced spectrometers are used to monitor and adjust the melt composition in real-time, ensuring consistency and quality.

Mold Preparation

While the metal is being melted, molds are prepared using high-quality sand and binders. The mold design is crucial as it determines the final shape and dimensions of the mill liner. Computer-aided design (CAD) software is often used to create precise mold patterns, which are then used to form the sand molds.

Casting

Once the molds are ready and the molten metal has reached the correct temperature and composition, the casting process begins. The molten metal is poured into the molds using automated pouring systems to ensure consistent flow and minimize defects. The cast iron is then allowed to cool and solidify under controlled conditions to achieve the desired microstructure.

Heat Treatment

After solidification, the cast iron mill liners undergo heat treatment to enhance their mechanical properties. This process may involve heating the liners to specific temperatures and then cooling them at controlled rates. Heat treatment can significantly improve the hardness, wear resistance, and overall performance of the mill liners.

Machining and Finishing

The final stage involves machining the cast iron mill liners to their exact specifications. This process ensures that the liners fit perfectly within the mill and provides the necessary surface finish. Advanced CNC machines are used to achieve high precision and consistency across all produced liners.

ASTM A532 vs. DIN standards for mill liner quality

Quality standards play a crucial role in ensuring the reliability and performance of cast iron ball mill liners. Two of the most widely recognized standards in the industry are ASTM A532 and DIN. Let's compare these standards and their implications for mill liner quality:

ASTM A532 Standard

The American Society for Testing and Materials (ASTM) A532 standard specifically addresses abrasion-resistant cast irons. This standard classifies cast irons into three main types based on their chemical composition and mechanical properties:

• Type I: Nickel-chromium white irons
• Type II: Chromium-molybdenum white irons
• Type III: High chromium white irons

Each type is further divided into classes based on specific alloying elements and heat treatment. For mill liners, Type III is often preferred due to its excellent abrasion resistance.

DIN Standard

The Deutsches Institut für Normung (DIN) standard, particularly DIN 1695, provides specifications for wear-resistant cast irons. This standard categorizes cast irons based on their microstructure and chemical composition. The DIN standard offers a comprehensive range of grades, allowing for more specific material selection based on the particular wear conditions in different mill applications.

Comparing ASTM A532 and DIN Standards

While both standards aim to ensure high-quality wear-resistant cast irons, they differ in their approach:

• Classification System: ASTM A532 uses a type and class system, while DIN uses a grade system based on chemical composition.
• Chemical Composition: Both standards specify ranges for key alloying elements, but DIN tends to offer more specific grades with narrower composition ranges.
• Hardness Requirements: ASTM A532 specifies minimum hardness values for each class, while DIN provides typical hardness ranges for each grade.
• Application Focus: ASTM A532 is more commonly used in North America, while DIN is more prevalent in Europe and some other international markets.

At NINGHU, we adhere to both ASTM A532 and DIN standards in our manufacturing processes, ensuring that our cast iron mill liners meet or exceed the requirements of both standards. This dual compliance allows us to serve a global market with consistently high-quality products.

X-ray inspection and hardness testing in quality control

Quality control is a critical aspect of manufacturing cast iron ball mill liners. Two key techniques used in this process are X-ray inspection and hardness testing. Let's examine how these methods contribute to ensuring the superior quality of mill liners:

X-ray Inspection

X-ray inspection is a non-destructive testing method that allows for the internal examination of cast iron mill liners without damaging the product. This technique is crucial for detecting hidden defects that may not be visible on the surface. Here's how X-ray inspection contributes to quality control:

• Defect Detection: X-ray inspection can reveal internal flaws such as porosity, inclusions, and cracks that could compromise the integrity of the mill liner.
• Dimensional Accuracy: Advanced X-ray systems can provide precise measurements of wall thickness and internal geometries, ensuring that the liners meet specified dimensions.
• Material Homogeneity: X-ray inspection can help verify the uniform distribution of alloying elements throughout the cast iron, which is crucial for consistent performance.
• Quality Assurance: By identifying and rejecting defective parts before they reach the customer, X-ray inspection helps maintain high quality standards and customer satisfaction.

Hardness Testing

Hardness testing is another essential quality control measure for cast iron mill liners. This test measures the material's resistance to permanent deformation when a force is applied. Several methods of hardness testing are employed, including:

• Brinell Hardness Test: This test involves pressing a hardened steel or carbide ball into the surface of the mill liner under a specific load. The resulting indentation is measured to determine the Brinell Hardness Number (BHN).
• Rockwell Hardness Test: This method uses a diamond cone or hardened steel ball to create an indentation under a specified load. The depth of the indentation is used to calculate the Rockwell Hardness value.
• Vickers Hardness Test: This test employs a diamond indenter in the shape of a pyramid. The hardness is determined by measuring the diagonals of the resulting indentation.

Hardness testing provides crucial information about the wear resistance and durability of cast iron mill liners. It helps ensure that the liners meet the specified hardness requirements for their intended application.

Integration of X-ray Inspection and Hardness Testing in Quality Control

At NINGHU, we integrate both X-ray inspection and hardness testing into our comprehensive quality control process. This approach allows us to:

• Verify Internal Integrity: X-ray inspection ensures that each cast iron mill liner is free from internal defects that could lead to premature failure.
• Confirm Mechanical Properties: Hardness testing verifies that the liners possess the required hardness and wear resistance for optimal performance.
• Ensure Consistency: By applying these tests to samples from each production batch, we maintain consistent quality across all our products.
• Meet Industry Standards: Our rigorous testing procedures ensure that our mill liners comply with relevant industry standards, including ASTM A532 and DIN specifications.

Through the combined use of X-ray inspection and hardness testing, we at NINGHU can guarantee the superior quality and reliability of our cast iron mill liners, providing our customers with products that consistently meet or exceed their expectations.

Conclusion

The manufacturing of high-quality cast iron mill liners involves complex processes and rigorous quality control measures. At NINGHU, we leverage advanced technologies and adhere to stringent industry standards to produce cast iron ball mill liners that deliver exceptional performance and longevity.

Our commitment to quality extends from raw material selection through to final inspection, ensuring that every liner that leaves our facility meets the highest standards of excellence. By combining traditional foundry techniques with modern manufacturing technologies and comprehensive quality control procedures, we continue to set the benchmark for cast iron mill liners in the industry.

If you're looking for reliable, high-performance cast iron mill liners for your grinding operations, we invite you to experience the NINGHU difference. Contact us today at sales@da-yang.com or sunny@da-yang.com to learn more about our products and how we can support your specific needs.
