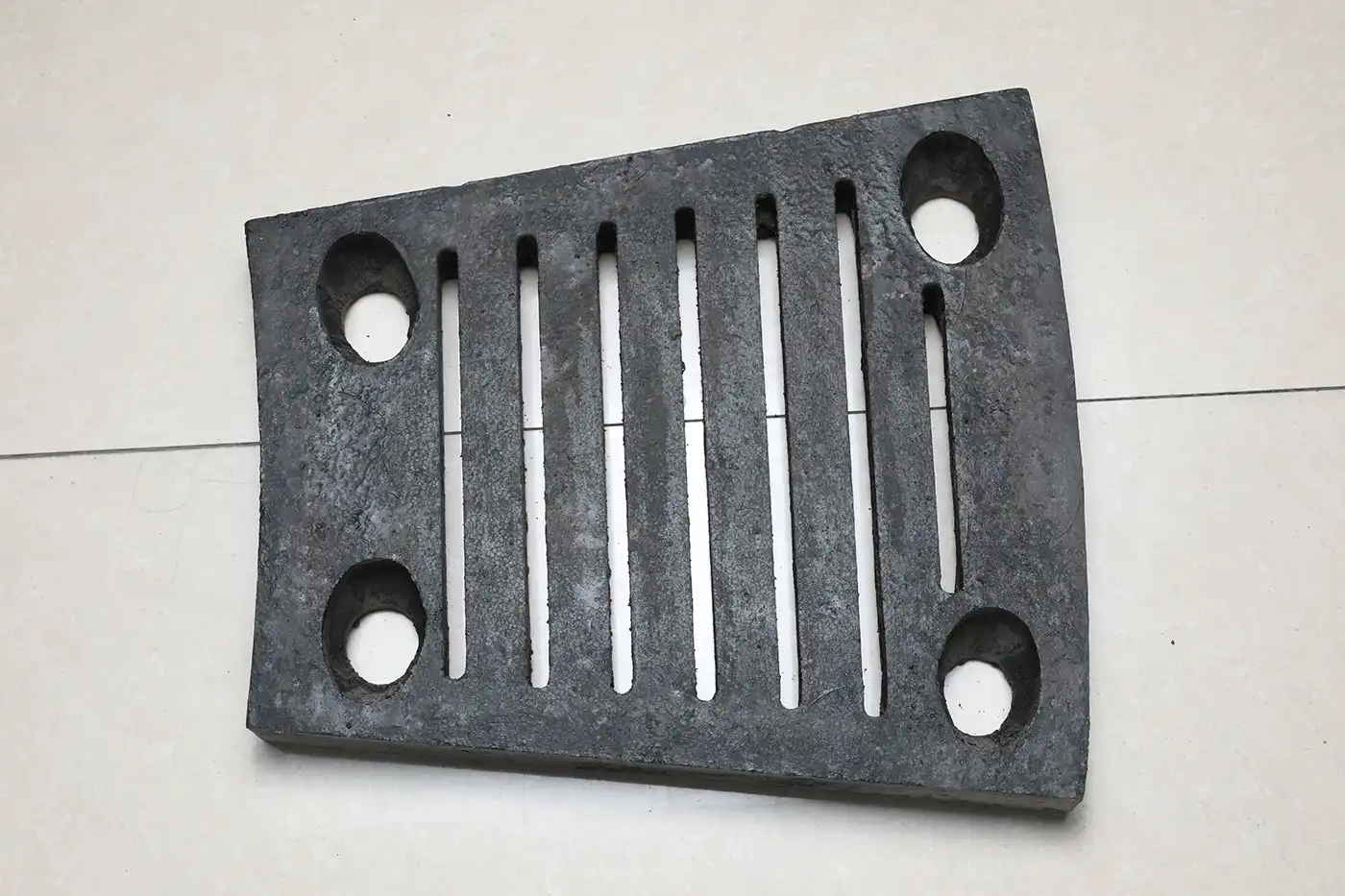

Common mistakes to avoid during mill liner installation
When installing cast iron ball mill liners, several pitfalls can compromise the effectiveness of your grinding operation. Being aware of these common mistakes can help you avoid costly errors and ensure a smooth installation process.
Improper surface preparation
One of the most frequent mistakes in installing cast iron mill liners is inadequate surface preparation. The internal surface of the mill shell must be properly cleaned before new liners are fitted. This involves removing any remaining fragments of old liners, rust buildup, scale, grease, or other contaminants that could interfere with proper seating. Failing to do so can result in poor contact between the liner and shell, leading to gaps that cause liner movement, uneven wear, and reduced operating life. Thorough cleaning ensures a solid mechanical fit and helps prevent vibration or misalignment that may compromise the grinding process.
Misalignment of liner plates
Accurate alignment of liner plates is essential for ensuring both effective grinding and mechanical stability. When cast iron mill liners are not properly aligned, the result can be uneven loading, excessive wear in specific areas, and increased stress on the bolts and shell. This not only reduces the grinding efficiency but can also lead to structural damage or even mill downtime. To prevent misalignment, technicians should always follow detailed installation instructions and utilize specialized alignment tools when necessary. Double-checking plate positions before final tightening can help maintain consistent spacing and protect the mill from premature wear or failure.
Inadequate bolt tightening
One of the most critical steps in mill liner installation is bolt tightening, and overlooking this can cause significant issues during operation. Cast iron mill liners must be secured with bolts tightened to the manufacturer’s specified torque levels to avoid loosening under stress. Inadequately tightened bolts can cause liners to shift or detach entirely, damaging the shell and compromising safety. It's important to use properly calibrated torque wrenches and apply uniform pressure across all bolts. Retorquing after an initial run-in period is also recommended to account for any settling or thermal expansion, further ensuring long-term liner stability.
Bolt tightening torque specifications for cast iron liners
Proper bolt tightening is crucial for the secure installation of cast iron mill liners. The correct torque ensures that the liners remain firmly in place during operation, preventing movement and potential damage.
Understanding torque specifications
Torque specifications for cast iron mill liners vary depending on factors such as bolt size, liner material, and mill dimensions. It's essential to consult the manufacturer's guidelines for specific torque values. Generally, torque values for cast iron liner bolts range from 200 to 1000 Nm, depending on the bolt diameter.
Torque sequence
To ensure even distribution of pressure and prevent warping, follow a specific tightening sequence:
- Start by hand-tightening all bolts.
- Begin the torque sequence at the center of the liner plate and work outwards in a star pattern.
- Tighten bolts to 50% of the specified torque value in the first round.
- Perform a second round at 75% of the specified torque.
- Complete the final round at 100% of the specified torque.
Torque verification
After initial installation, it's crucial to re-check the torque values after a short period of mill operation. This step ensures that the bolts maintain proper tension as the liners settle into place.
Safety protocols for liner replacement in operating mills
Replacing cast iron ball mill liners in operating mills presents unique challenges and safety risks. Adhering to strict safety protocols is essential to protect workers and maintain the integrity of the mill.
Lockout/Tagout procedures
Before beginning any cast iron mill liners replacement work, implement a comprehensive lockout/tagout procedure to ensure that the mill cannot be accidentally started during maintenance:
- Shut down all power sources to the mill.
- Isolate and lock out electrical, hydraulic, and pneumatic systems.
- Tag all lockout points with clear, identifying information.
- Verify that the mill is completely de-energized before proceeding.
Personal protective equipment (PPE)
Proper PPE is crucial for worker safety during liner replacement. Essential PPE includes:
- Hard hats
- Safety glasses or face shields
- Steel-toed boots
- Heavy-duty gloves
- Hearing protection
- Respiratory protection (if required)
Confined space entry procedures
Mill liner replacement often requires workers to enter confined spaces. Implement strict confined space entry procedures:
- Obtain necessary permits for confined space entry.
- Test the atmosphere for hazardous gases before entry.
- Ensure proper ventilation throughout the work process.
- Assign a dedicated safety attendant to monitor workers inside the mill.
- Establish clear communication protocols between workers and the attendant.
Proper lifting and handling techniques
Cast iron mill liners are heavy and cumbersome. To prevent injuries during handling:
- Use appropriate lifting equipment, such as hoists or cranes, rated for the liner weight.
- Ensure all lifting equipment is inspected and certified before use.
- Train workers in proper lifting techniques to avoid strain or injury.
- Coordinate movements carefully when multiple workers are involved in liner placement.
By following these best practices for installation, bolt tightening, and safety protocols, you can ensure the efficient and secure installation of cast iron mill liners. Proper installation not only enhances the performance of your grinding operation but also contributes to a safer work environment and extended equipment lifespan.
